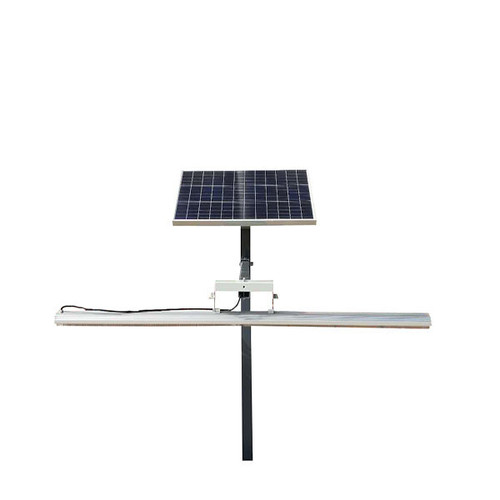

This commercial grade solar billboard light is a highly efficient and durable lighting solution engineered to deliver powerful illumination for various outdoor applications. Constructed from marine-grade aviation aluminum AL6063-T5, it offers superior resistance to corrosion, ensuring long-lasting performance in harsh environmental conditions. With an IP67 rating, this light is fully weatherproof, making it suitable for installation in high-exposure locations such as highways, advertising billboards, and sculpture lighting. Its integrated design combines a high-output LED light bar, an advanced MPPT-controlled charging system, a reliable LiFePO4 battery, and a durable mono-crystalline solar panel, providing a seamless off-grid lighting solution.
Designed for optimal energy efficiency, this solar lighting system features a 36W LED array that emits a powerful 5000-lumen output, ensuring exceptional visibility in large outdoor spaces. The 80W solar panel maximizes energy absorption, while the MPPT intelligent charge controller optimizes charging efficiency to maintain consistent performance under varying sunlight conditions. With a rapid charging time of 6 to 8 hours in strong sunlight and a three-day backup capacity, this light guarantees uninterrupted operation, even in low-sunlight conditions. The automated dusk-to-dawn functionality, coupled with overcharge and discharge protection, ensures reliable, maintenance-free operation.
This solar billboard light is engineered for ease of installation and adaptability, featuring an adjustable mounting bracket that supports installation heights ranging from 2 to 7 meters. Its recommended spacing of 2.5 to 3 meters ensures even light distribution across large surfaces. The modular design allows for straightforward assembly and maintenance, with separate components for the LED light bar, battery and control box, solar panel, and outreach mounting arm. Each component is meticulously designed for stability, ensuring optimal performance in a variety of demanding environments.
Certified to CE, RoHS, SASO, and IEC standards, this lighting system upholds the highest industry benchmarks for safety and performance. It offers a cost-effective and eco-friendly alternative to traditional grid-powered lighting, significantly reducing energy costs and maintenance requirements. Designed for use in commercial and residential applications, it is an ideal choice for businesses and municipalities seeking a dependable, high-performance outdoor lighting solution. With a 24-month warranty covering manufacturer defects, this solar billboard light represents a superior investment in sustainable and efficient outdoor illumination.
MATERIAL: Aviation aluminum AL6063-T5 (marine grade)
IP RATING: IP67 (fully weatherproof)
WATTAGE: 36W (LED), 80W (Solar panel)
LUMENS: 5000lm
WEIGHT: 11.2kg (Battery/control box), 3.8kg (LED light bar), 7.4kg (Solar panel), 12.5kg (Metal outreach mounting arm)
DIMENSIONS: 560mm x 280mm x 350mm (Battery/control box), 1680mm x 170mm x 110mm (LED light bar), 1050mm x 130mm x 570mm (Solar panel), 2230mm x 340mm x 70mm (Metal outreach mounting arm)
BATTERY: LiFePO4 12.8V 33AH rechargeable and replaceable
CHARGE TIME: 6-8 hours (by strong sunshine)
BACKUP DAYS: 3 days
SOLAR PANEL: 18V Mono-crystalline
CONTROLLER: MPPT intelligent charge controller
INSTALLATION HEIGHT: 2 - 7 metres
RECOMMENDED SPACING: 2.5m to 3m
INCLUDES: LED light bar, battery/control box with mounts, solar panel, metal outreach mounting arm
OPERATION: Automatic dusk-to-dawn lighting; intelligent day/night controller with overcharge/discharge protection
CERTIFICATION: CE RoHs SASO IEC
APPLICATIONS: Highway signage, sculpture lighting, carports, advertising billboards, real estate signage
WARRANTY: 24 months (manufacturer’s faults, excluding batteries)
